T25Series 1, Sub-Compact Tractor
- Engine power24.7 hp
- Hitch lift capacity1534 lb
Get work done quicker with this small-frame tractor. Highly maneuverable and with maximized lift capabilities, the T25 is designed to be an all-round multi-tasking machine.
Helping you maintain a healthy lawn
With narrow dimensions, a small turning radius, intuitive controls and a lightweight design, a TYM sub-compact tractor is the ideal machine for any home with a yard. A dedicated mid-mount linkage allows easy attachment to a range of mowers in different sizes, while front-end and rear linkages allow for additional functionality compared to riding mowers.
Enabling you to build and maintain a home garden
With a TYM sub-compact tractor, you can leverage multi-functional capabilities and ease of maneuverability to build and maintain your home garden. From tilling the land and spreading fertilizer to aerating and seeding your soil, this tractor is easy to operate and swap implements, enabling you to grow all types of plant life, simply and effectively.
Making yardwork easier and more enjoyable
Complete chores around your property quickly and affordably. From brushing dust and dirt from your driveway to lifting and dumping fallen leaves and other waste, a TYM sub-compact offers the right mix of size and power for maneuverability and efficient engine performance.
Creating space for a lively home farm
Comfortable to sit in and easy to operate, a TYM sub-compact tractor has the light design and small turning radius to assist with maintaining animal life at home. Level the yard, trim grass, spread feed, move hay bales, clear waste and much more.
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.
All the right features to get the job done
Complete a range of jobs with a TYM Series 1 tractor. Achieve results faster with a powerful high-torque engine, control implements easily with a PTO switch, and stay energized with an ergonomically designed operator station.

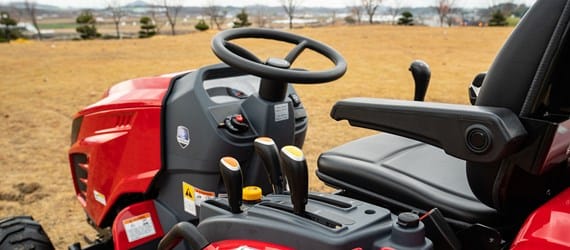

Superior operator amenities for greater productivity
Fully equipped with modern amenities to maximize operator comfort, this tractor is complete with a large cup holder, wireless smartphone charging dock, multiple USB ports to charge personal devices and a Bluetooth speaker. These features are designed to promote productivity, keeping drivers hydrated, connected, and alert during every job.

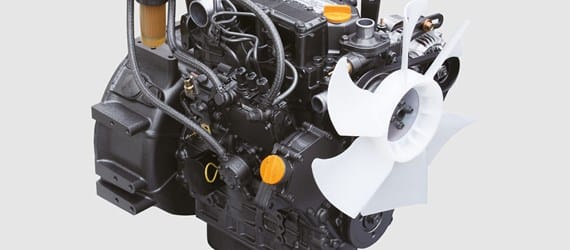

High torque, water-cooled Yanmar diesel engine
The Yanmar engine offers more torque with fewer revs compared to competitors in its class. Since it is water-cooled, the engine warms up faster and stabilizes temperature more effectively while the tractor is running. The engine is Tier 4 certified as it matches environmental and noise emission standards.

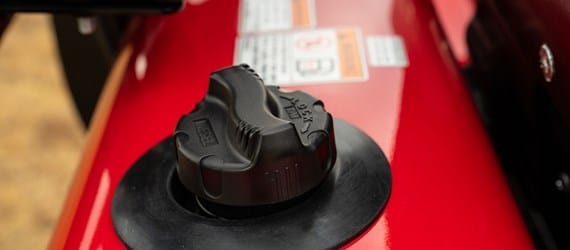

High capacity fuel tank to support time intensive work

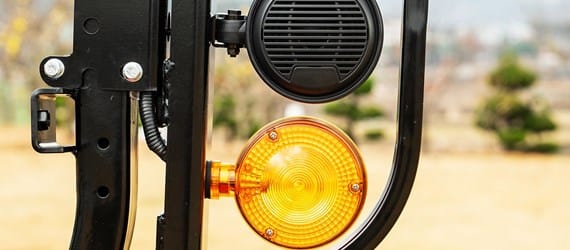

Customizable rear accessories to meet a variety of needs

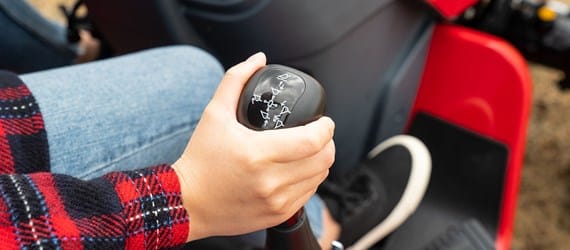

Upgraded detailing to reduce operator effort
Comfortable and secure seating for confident operation

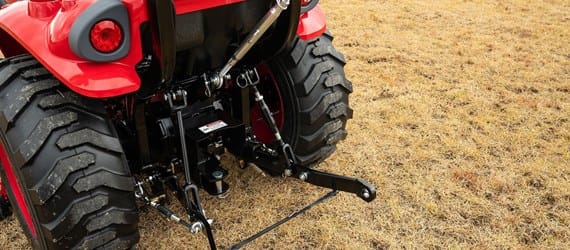

3-point hitch with powerful lift capacity
3rd function hydraulic valve to enhance implement capabilities (optional)
Technical specifications
Not sure which tractor is right for you? Compare the specifications of each tractor model.
ENGINE | |
|---|---|
| Engine manufacturer | Yanmar 3TNV80F |
| Type | Natural Aspiration |
| Gross engine power | 24.7 hp | 18.4 kW |
| PTO power | 18.3 hp | 13.6 kW |
| Rated engine speed | 3000 rpm |
| No. of cylinders | 3 |
| Displacement | 77.3 cu. in. |
| Air cleaner | Single Dry |
| Alternator | 12V, 40A |
| Fuel system | IDI |
POWERTRAIN | |
| Transmission type | Synchro-Shuttle/HST |
| No. of speeds | Infinite 2-Range |
| Max. traveling speed | 13.7 mph |
| Brakes | Wet Disc |
| Steering | Hydrostatic |
| Clutch | N/A |
HYDRAULIC SYSTEM | |
| Pump type | Single Gear Pump |
| Implement flow | 4.18 gpm |
| Steering flow | 2.77 gpm |
| Total flow | 6.95 gpm |
| Category, 3-point hitch | I |
| Hitch lift capacity | 1534 lb |
| Hitch lift capacity at 24 inches behind link ends | 1102 lb |
| Lift control type | Position |
| No. of standard remote valves | Optional (1) |
PTO | |
| PTO type | Independent |
| PTO control | Electric/Hydro |
| PTO rear | 540 rpm |
CAPACITIES | |
| Fuel tank | 6.6 gal |
| Coolant | 3.8 qt |
| Crankcase | 2.9 qt |
| Transmission/Hydraulics system | 5.8 gal |
| Front axle | 4.7 qt |
DIMENSIONS & WEIGHTS | |
| Overall length with 3-point hitch | 107.8 in. |
| Overall width | 52.8 in. |
| Wheelbase | 61 in. |
| Height to top of ROPS | 89.8 in. |
| Min. ground clearance | 7.71 in. |
| Min. turn radius with brakes | 102.4 in. |
| Min. turn radius without brakes | 109.5 in. |
| Weight with ROPS | 1881 lb |
| Weight with cab | 2399 lb |
STANDARD TIRES | |
| R3 Turf – Front | Turf Master 23×8.50-12 NHS TL 4PR |
| R3 Turf – Rear | Multi-Trac CS 33×12.50-16.5 NHS TL 4PR |
| R4 Industrial – Front | Trac Chief 23×8.50-14 NHS TL 4PR |
| R4 Industrial – Rear | Trac Chief 14-17.5 NHS TL 6PR |
Upgrades for the Series 1, T25
Complement the capabilities of your TYM tractor with compatible options and accessories.
Options
| Cabin | CAB25 | ||
| Tire | R3 Turf Tires | F Turf Master 23×8.50-12 NHS TL 4PR | R Multi-Trac CS 33×12.50-16.5 NHS TL 4PR |
| Tire | R4 Industrial Tires | F Trac Chief 23×8.50-14 NHS TL 4PR | R Trac Chief 14-17.5 NHS TL 6PR |
Accessories
| Block heater |
| Mid-PTO kit |
| Auxiliary hydraulic kit |
| Front counterweights |
| ROPS-mounted bluetooth speaker |
| ROPS-mounted light kit |
| TB65A Mechanical Thumb |
| BHPAD100 Street Pads |
| Rear wiper kit |
Mulching kits
|
